What it does
Reads handwritten PDFs
Azure Document Intelligence scans each word and assigns a confidence score. Low-confidence words are re-analyzed visually by GPT-4o — no manual transcription needed.
Extracts medical acts
A specialized medical NLP service identifies every clinical element — procedures, medications, measurements, symptoms — and verifies nothing was invented or omitted.
Matches billing codes
Each act is matched to its official RAMQ tariff code using vector similarity search. An automatic fallback activates if the primary engine is unavailable.
Audits for clinical logic
An AI auditor cross-checks each billed act against the full clinical context of the patient file. Billing an analgesic for a patient with zero pain, for example, is flagged as an anomaly.
Generates billing reports
Validated acts are exported as structured JSON and CSV with the total billable amount — only acts that passed the audit are included.
Manager dashboard
A Streamlit interface lets clinic managers approve clean dossiers in one click or manually correct flagged billing codes before archiving.
The 5-step pipeline
OCR Reading
The PDF is sent to Azure Document Intelligence. Each word receives a confidence score — words below the threshold are sent to GPT-4o Vision for visual correction. The pipeline stops entirely if too many critical words are unreadable.
Medical Extraction
Azure Text Analytics for Health identifies all clinical entities. The system then verifies mathematically that the LLM produced exactly what the medical service found — no hallucinations, no omissions.
RAMQ Code Matching
Each act is compared to the official RAMQ tariff database using optimized vector search (NumPy dot product with L2-normalized OpenAI embeddings). A secondary LLM fallback ensures no act goes unmatched.
Consistency Audit
An LLM playing the role of medical auditor verifies that each billed act is clinically justified within the full context of the patient file. Anomalies are flagged for human review rather than silently passed.
Billing Report
Validated acts are consolidated into a structured JSON file and a CSV export, with the total billable amount calculated. The manager dashboard allows one-click approval or granular correction.

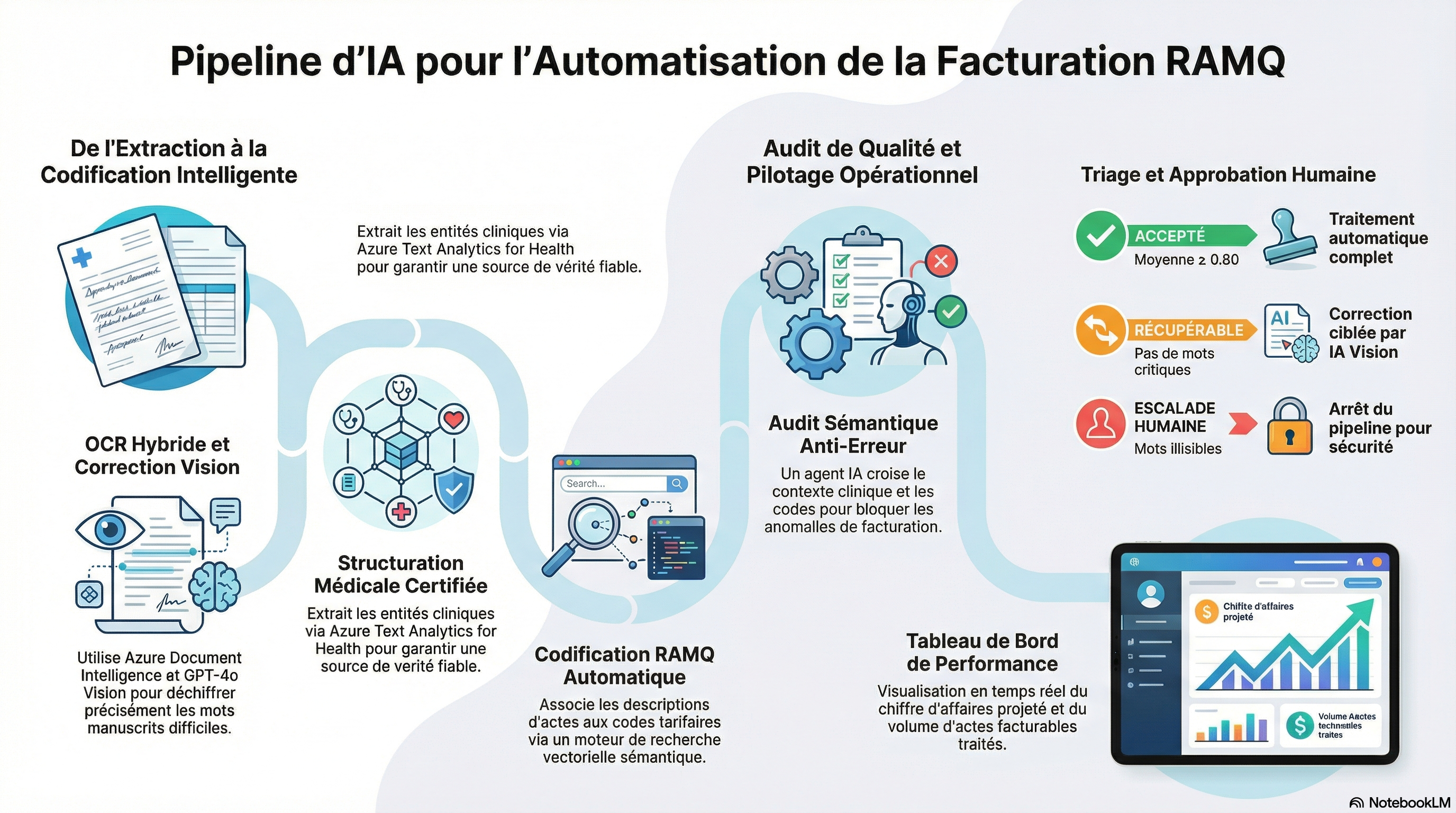

System architecture
End-to-end pipeline — from PDF upload to validated billing report.
Technology stack
OCR
Azure Document Intelligence
Visual Correction
GPT-4o Vision
Medical NLP
Azure Text Analytics for Health
Code Matching
Vector Search — NumPy + OpenAI
Data Validation
Pydantic V2
Interface
Streamlit
Deployment
Docker · Azure Container Apps
CI / CD
GitHub Actions · Ruff · MyPy
